Bridges and Structures

Structural plate is a durable and cost-effective alternative for the construction of short span bridges and water crossings. Lightweight and versatile, steel components are easy to ship and install in the field. With a range of attractive end treatments, aesthetics are never sacrificed. Our team of talented engineers can design a custom solution to meet your project needs.

Aluminum Structural Plate Slide 0 Aluminum Structural Plate Slide 0

Aluminum Structural Plate

Aluminum Structural Plate is extremely durable, with an estimated 75+ year, maintenance-free service life. Corrosion and abrasion-resistant, it is an ideal option for saltwater and aggressive soil conditions. Aluminum reinforcing ribs are used when necessary to increase structural stiffness for heavier loads. Strong and lightweight – 1/50 the weight of the concrete – Aluminum Structural Plate requires minimal equipment for handling and installation.

Product Details
Big ‘O’® HDPE Tubing Slide 0 Big ‘O’® HDPE Tubing Slide 0

Big ‘O’® HDPE Tubing

Big ‘O’® High Density Polyethylene (HDPE) tubing provides superior performance and durability in the agricultural, residential building and highway sectors. Using state-of-the-art manufacturing equipment, Armtec produces a full product line of both solid and perforated tubing.

Product Details
Big ‘O’® HDPE Tubing for Building Trades Slide 0 Big ‘O’® HDPE Tubing for Building Trades Slide 0

Big ‘O’® HDPE Tubing for Building Trades

BIG ‘O’® High Density Polyethylene (HDPE) tubing provides superior performance and durability in the agricultural, residential building and highway sectors. Using state-of-the-art manufacturing equipment, Armtec produces a full product line of both solid and perforated tubing.

Product Details
Bridge in a Box® Slide 0 Bridge in a Box® Slide 0

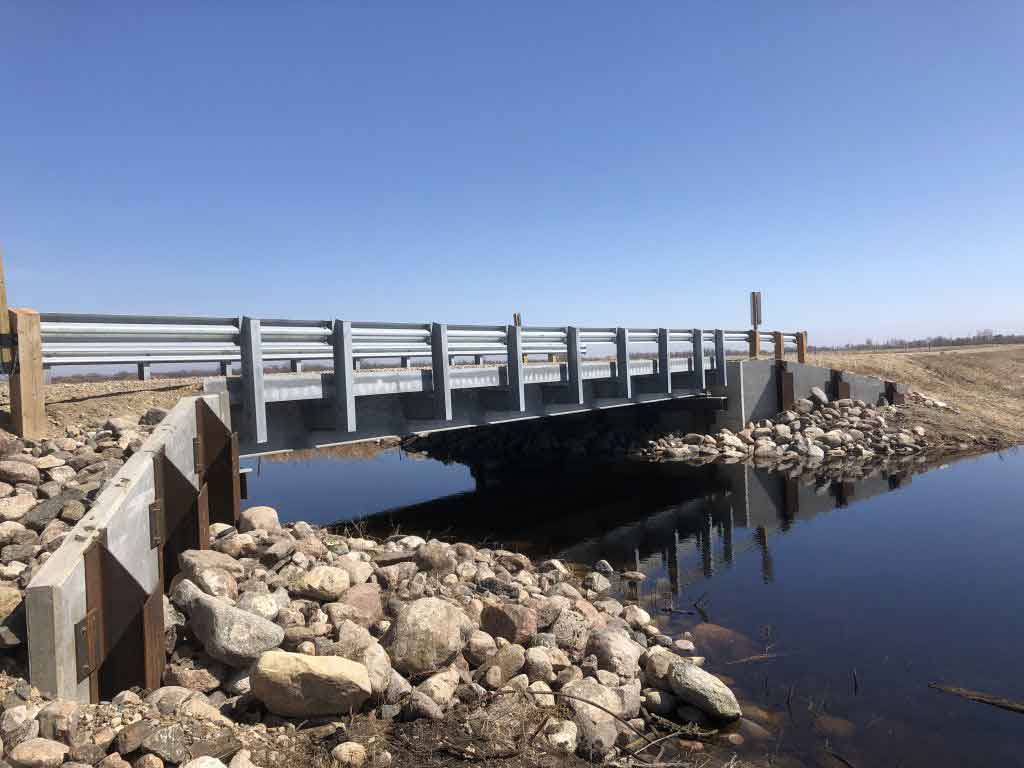

Bridge in a Box®

Bridge in a Box® is an engineered, pre-fabricated modular steel bridge that is delivered to site in single or double lane configurations and spans from 6m to 24.5m. The customizable Bridge in a Box design is complemented by standard steel posts with W-Beam or Thrie Beam guardrail for low volume roads. The open span ensures exceptional hydraulics with little impact on the stream environment. Bridge in a Box is an ideal solution for rural, forestry, and remote locations, and complies with the Canadian Highway Bridge Design Code (CHBDC) for pedestrian and highway live loads.

Product Details
Bridge Plank Slide 0 Bridge Plank Slide 0

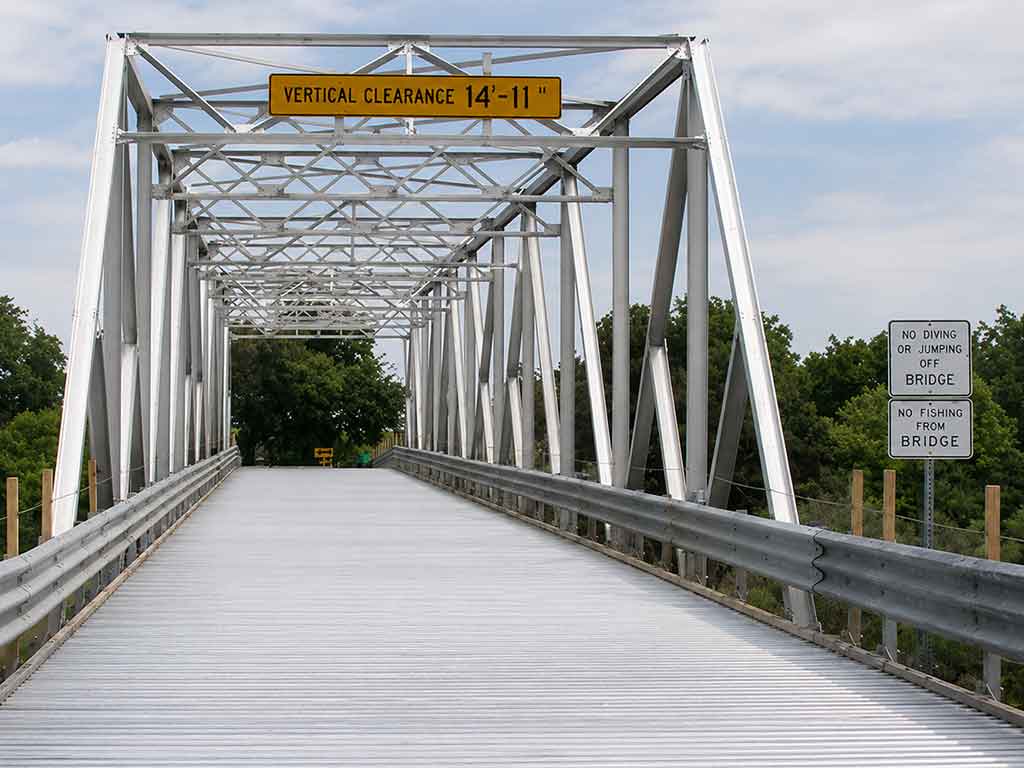

Bridge Plank

Bridge plank provides a solid deck. It is a cost-effective, durable, and fireproof solution for bridge rehabilitation, and can be used as a continuous bridge deck surface for new bridges. Once welded or bolted in place, Bridge Plank restores the deck strength of old structures and stiffens bridges horizontally, providing a solid base for new asphalt or concrete paving. The galvanized steel planks minimize the danger of fire and eliminate rattles, cracks, warp, or rot.

Product Details
BRIDGE-PLATE® Slide 0 BRIDGE-PLATE® Slide 0

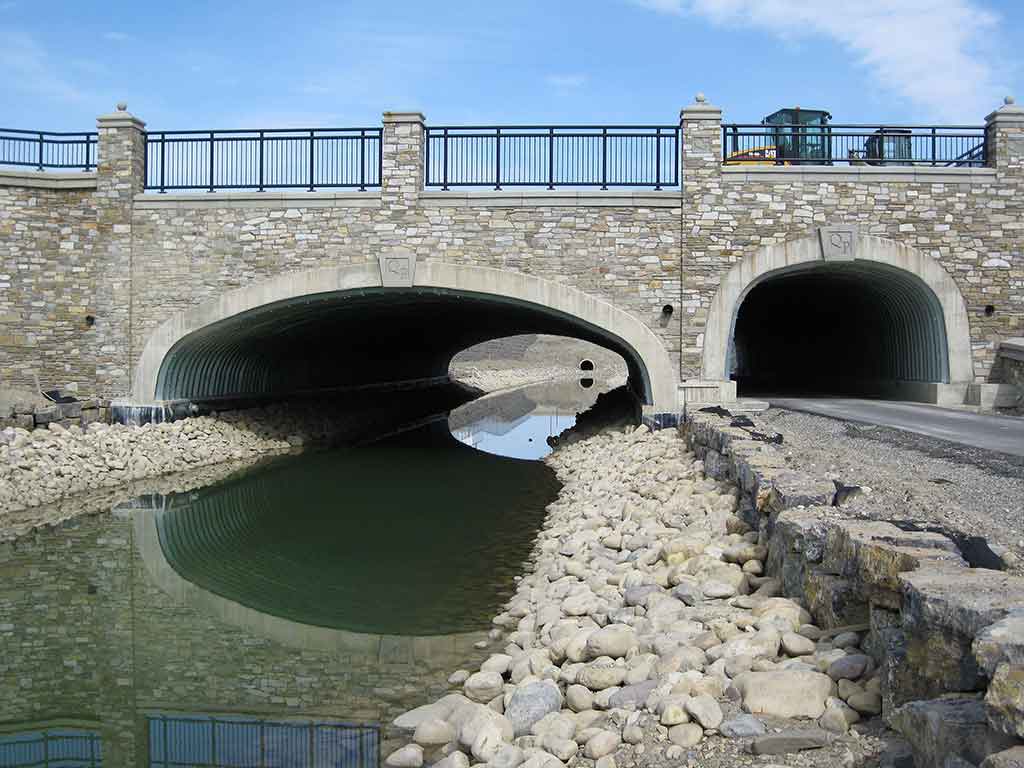

BRIDGE-PLATE®

BRIDGE-PLATE Deep Corrugated Structural Plate (DCSP) is one of the strongest structural plate products on the market today with the deepest corrugation profile possible. It allows an economical construction of long span soil-steel structures in arch, ellipse, round and box-culvert shapes. Configurations are pre-engineered to make the selection process quick and easy. Standard spans range from 4m to 18m, with longer custom designs available. BRIDGE-PLATE is available with the Strata-CAT polymer coating system for added corrosion and abrasion protection.

Product Details
MiniSpan Slide 0 MiniSpan Slide 0

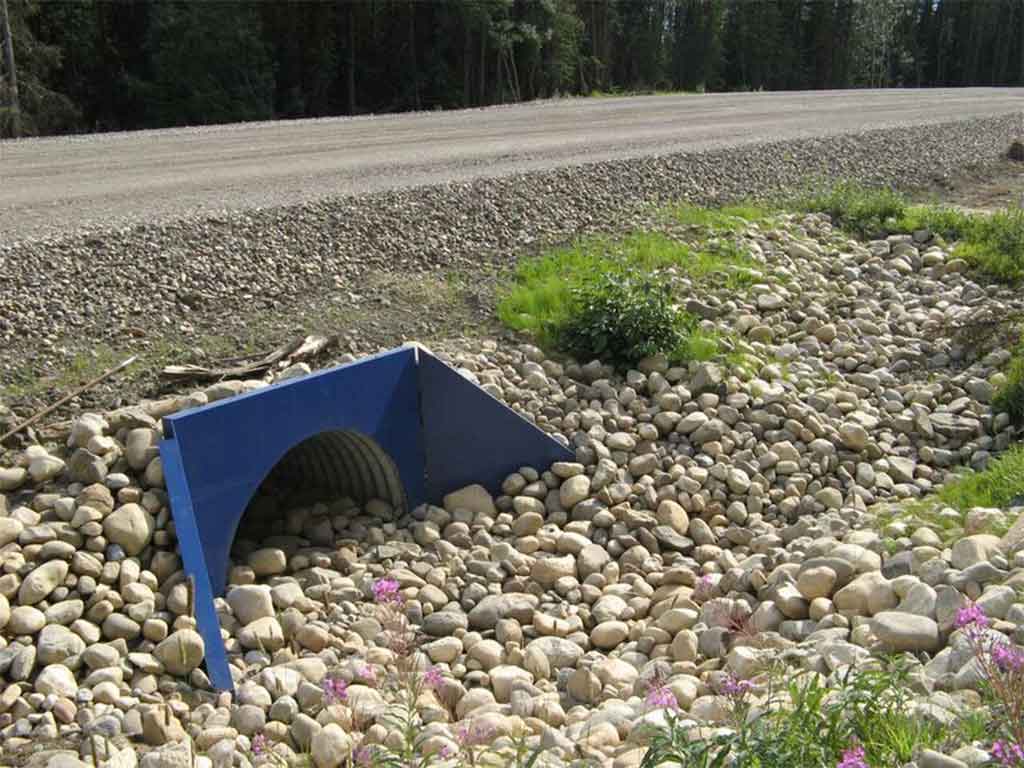

MiniSpan

MiniSpan corrugated steel structures are an economical and rapid solution for a variety of stream crossings. Sections are available up to 15 m long and are easily joined together on-site with a lapped connection. They are pre-assembled at the plant and custom designed for a combination of spans and load-carrying capabilities.

Product Details
Multi Plate Slide 0 Multi Plate Slide 0

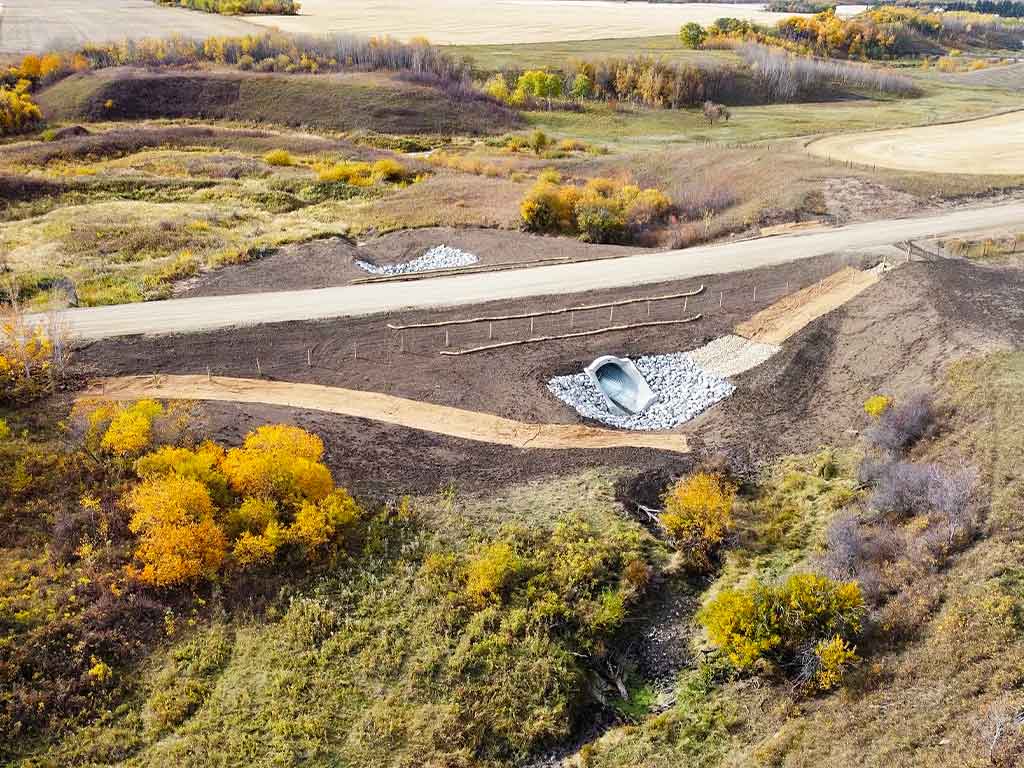

Multi Plate

Multi Plate is a versatile and economical bridge and culvert product that can be custom designed for almost any application. It is most commonly used as the steel element of a buried soil-steel structure, but it can also be part of free-standing structures such as rock fall protection, conveyer tunnels, caissons and more. Strata-CAT polymer coating is available for added protection in corrosive or acidic environments.

Product Details
Slotted Drain Slide 0 Slotted Drain Slide 0

Slotted Drain

The slotted drain is a surface water collection system that effectively removes runoff from flat, paved surfaces to promote safety and convenience. We offer three grate options in variable grid heights and widths – welded single and double width grates, and welded or removable triple width grates. The slotted drain is made of durable galvanized steel and can be connected to CSP, PVC or HDPE pipe.

Product Details
Tunnel Liner Plate Slide 0 Tunnel Liner Plate Slide 0

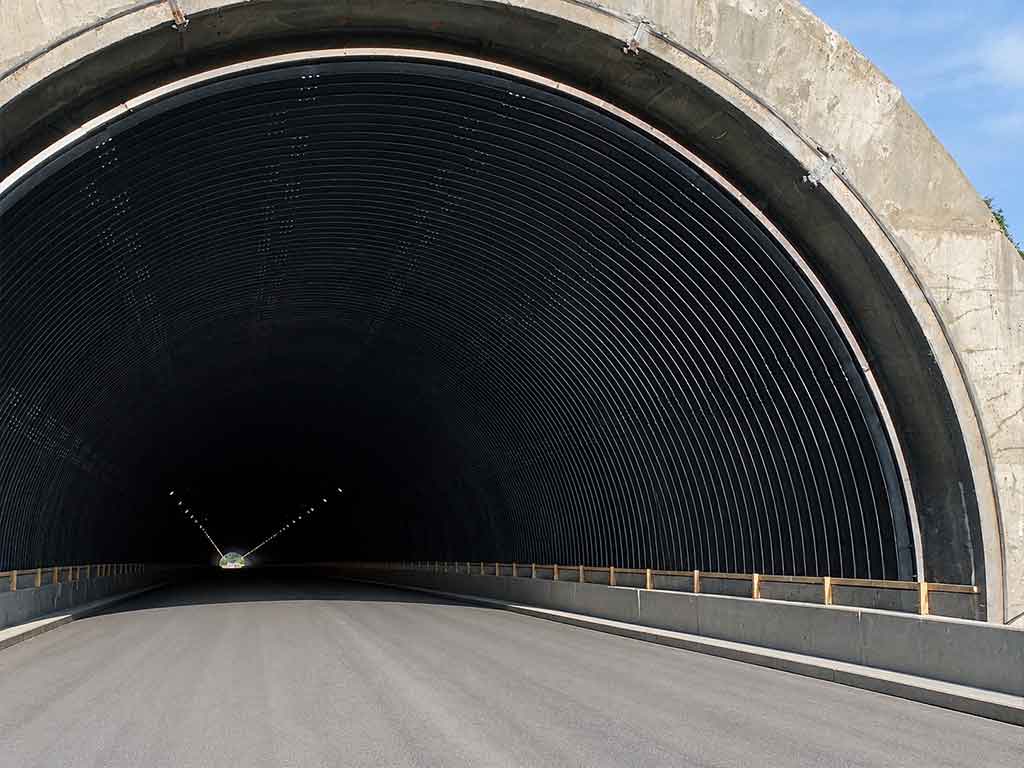

Tunnel Liner Plate

Tunnel Liner Plate is one of the most versatile segmental corrugated steel plate systems on the market today. Designed specifically for lining soft ground tunnels and relining existing conduits under highways and railroads, its applications extend to caissons, vertical shafts, mine entries and much more.

Product Details
